FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION

id152000002200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(2)  Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(3)  Forward sensing camera (FSC) short-cord (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)

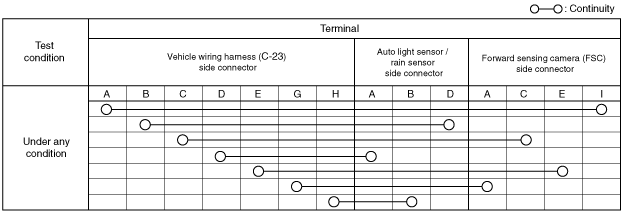

3.  Verify that the continuity between the forward sensing camera (FSC) short-cord terminals is as indicated in the table.

am2zzw00011527

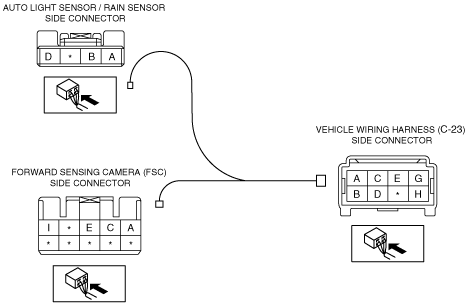

am2zzw00011528

•  If not as indicated in the table, replace the forward sensing camera (FSC) short-cord. (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)
