BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION

id152000005100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL.) (See REAR BUMPER INSTALLATION.)

(4)  Blind spot monitoring (BSM) control module (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.)

3.  Remove the nuts.

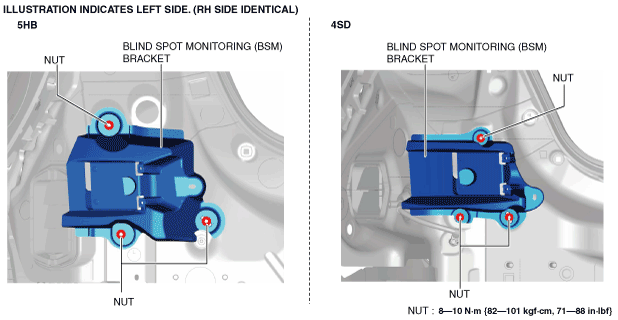

am2zzw00009901

4.  Remove the blind spot monitoring (BSM) bracket.

5.  Install in the reverse order of removal.

Caution

•  If the blind spot monitoring (BSM) bracket is replaced, not performing the blind spot monitoring (BSM) radar aiming will cause a deviation in the radar emission angle which could result in the system not detecting a vehicle approaching from the rear correctly. When the blind spot monitoring (BSM) bracket is replaced, perform the blind spot monitoring (BSM) radar aiming.

6.  When the blind spot monitoring (BSM) bracket is replaced, perform the blind spot monitoring (BSM) radar aiming. (See BLIND SPOT MONITORING (BSM) RADAR AIMING.)
