PRIMARY GEAR DISASSEMBLY/ASSEMBLY

id051700116600

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

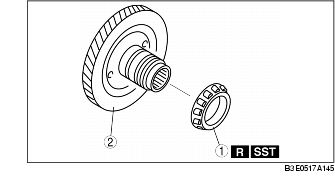

1	Bearing (See Bearing Disassembly Note.) (See Bearing Assembly Note.)
2	Primary gear

Bearing Disassembly Note

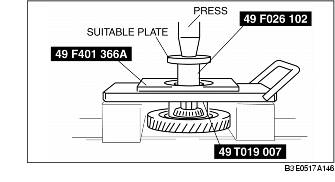

• Remove the bearing from the primary gear using the SSTs and suitable plate.

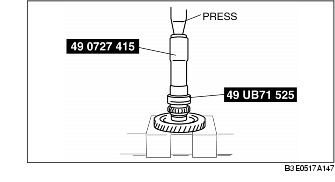

• Install the bearing to the primary gear using the SSTs.
