Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
VERIFY RELATED PENDING CODE OR STORED DTC
• Turn the ignition switch off, then the ON position (engine off).
• Verify the pending code or stored DTCs using the WDS or equivalent.
• Is other DTC present?
|
Yes
|
Go to the appropriate DTC troubleshooting procedure.
(SeeDTC TABLE [ZY].)
|
No
|
Go to the next step.
|
||
4
|
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA
• Is the DTC P0132 on FREEZE FRAME DATA?
|
Yes
|
Go to the next step.
|
No
|
Go to troubleshooting procedures for DTC on FREEZE FRAME DATA.
(SeeDTC TABLE [ZY].)
|
||
5
|
INSPECT FRONT HO2S CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the front HO2S connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 9.
|
No
|
Go to the next step.
|
||
6
|

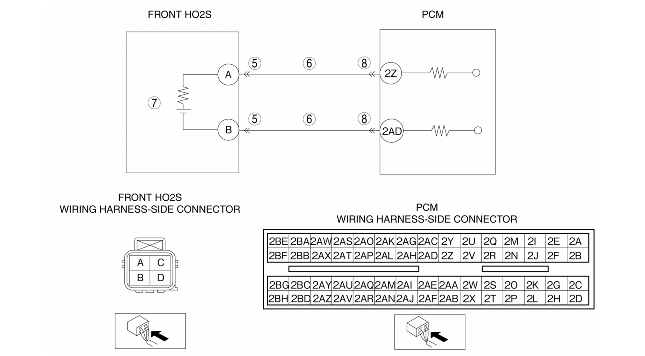

INSPECT FRONT HO2S CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between the following terminals and body ground.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
No
|
Go to the next step.
|
||
7
|
INSPECT FRONT HO2S
• Inspect the front HO2S.
• Is there any malfunction?
|
Yes
|
Replace the front HO2S, then go to Step 9.
|
No
|
Go to the next step.
|
||
8
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY TROUBLESHOOTING OF DTC P0132 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Perform the "KOEO or KOER self-test".
(See KOEO/KOER SELF TEST [ZY].)
• Is the DTC P0132 present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "AFTER REPAIR PROCEDURE".
(See AFTER REPAIR PROCEDURE [ZY].)
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [ZY].)
|
No
|
DTC troubleshooting completed.
|
