DTC P2122 [ZY]


DTC P2122	APP sensor No.1 circuit low input
DETECTION CONDITION	• The PCM monitors the input voltage from the APP sensor No.1 when the engine is running. If the input voltage is 0.35 V or less, the PCM determines that the APP sensor No.1 circuit input voltage is low. Diagnostic support note • This is a continuous monitor (CCM). • The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle. • PENDING CODE is available if the PCM detects the above malfunction condition. • FREEZE FRAME DATA is available. • The DTC is stored in the PCM memory.

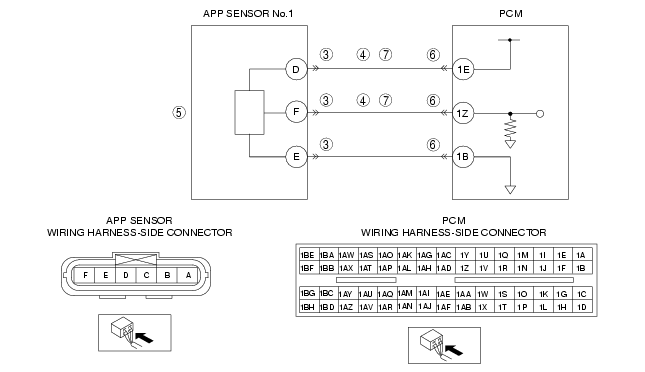

POSSIBLE CAUSE	• APP sensor No.1 malfunction • Connector or terminal malfunction • Open circuit in wiring harness between APP sensor terminal D and PCM terminal 1E • Short to ground in wiring harness between APP sensor terminal D and PCM terminal 1E • Open circuit in wiring harness between APP sensor terminal F and PCM terminal 1Z • Short to ground in wiring harness between APP sensor terminal F and PCM terminal 1Z • PCM malfunction


STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED • Has FREEZE FRAME DATA been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY • Verify related service repair information availability. • Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION • Turn the ignition switch off. • Disconnect the APP sensor connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 8.
3		No	Go to the next step.
4	INSPECT APP SENSOR NO.1 CIRCUIT FOR SHORT TO GROUND • Turn the ignition switch off. • Inspect for continuity between the following circuits: - APP sensor terminal D (wiring harness-side) and body ground - APP sensor terminal F (wiring harness-side) and body ground • Is there any continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 8.
4		No	Go to the next step.
5	INSPECT APP SENSOR NO.1 • Inspect the APP sensor No.1. (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [ZY].) • Is there any malfunction?	Yes	Replace the accelerator pedal, then go to Step 8. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZY].)
5		No	Go to the next step.
6	INSPECT PCM CONNECTOR FOR POOR CONNECTION • Turn the ignition switch off. • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 8.
6		No	Go to the next step.
7	INSPECT APP SENSOR NO.1 CIRCUIT FOR OPEN CIRCUIT • Turn the ignition switch off. • Inspect for continuity between the following circuits: - APP sensor terminal D (wiring harness-side) and PCM terminal 1E (wiring harness-side) - APP sensor terminal F (wiring harness-side) and PCM terminal 1Z (wiring harness-side) • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8	VERIFY TROUBLESHOOTING OF DTC P2122 COMPLETED • Make sure to reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the WDS or equivalent. • Perform the KOEO/KOER self test. (See KOEO/KOER SELF TEST [ZY].) • Is the PENDING CODE same as the DTC present?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [ZY].)
8		No	Go to the next step.
9	VERIFY AFTER REPAIR PROCEDURE • Perform the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE [ZY].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [ZY].)
9		No	DTC troubleshooting completed.
