Diagnostic procedure
|

STEP

 |


INSPECTION

 |


ACTION

 |
|
|---|---|---|---|
|

1

 |


VERIFY FREEZE FRAME DATA HAS BEEN RECORDED

• Has FREEZE FRAME DATA been recorded?

 |


Yes

 |


Go to the next step.

 |
|

No

 |


Record the FREEZE FRAME DATA on the repair order, then go to the next step.

 |
||
|

2

 |


VERIFY RELATED REPAIR INFORMATION AVAILABILITY

• Verify related service repair information availability.


• Is any related repair information available?

 |


Yes

 |


Perform repair or diagnosis according to the available repair information.


• If the vehicle is not repaired, go to the next step.

 |
|

No

 |


Go to the next step.

 |
||
|

3

 |

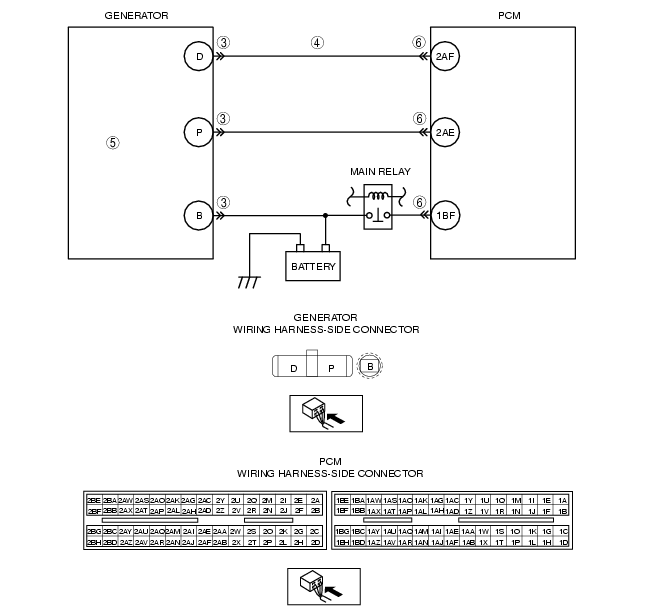

INSPECT GENERATOR CONNECTOR FOR POOR CONNECTION

• Turn the ignition switch off.


• Disconnect the generator connector.


• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).


• Is there any malfunction?

 |


Yes

 |


Repair or replace the terminal, then go to Step 7.

 |
|

No

 |


Go to the next step.

 |
||
|

4

 |


INSPECT GENERATOR CONTROL TERMINAL FOR SHORT TO POWER SUPPLY

• Turn the ignition switch to the ON position (Engine off).


• Measure the voltage between generator terminal D (wiring harness-side) and body ground.


• Is the voltage B+?

 |


Yes

 |


Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.

 |
|

No

 |


Go to the next step.

 |
||
|

5

 |


INSPECT BATTERY

• Inspect the battery.


(See BATTERY INSPECTION [ZY].)


• Is there any malfunction?

 |


Yes

 |


Replace the battery, then go to Step 7.


 |
|

No

 |


Go to the next step.

 |
||
|

6

 |


INSPECT PCM CONNECTOR FOR POOR CONNECTION

• Turn the ignition switch off.


• Disconnect the PCM connector.


• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).


• Is there any malfunction?

 |


Yes

 |


Repair or replace the terminal, then go to next step.

 |
|

No

 |


Go to the next step.

 |
||
|

7

 |


VERIFY TROUBLESHOOTING OF DTC P2504 COMPLETED

• Make sure to reconnect all disconnected connectors.


• Clear the DTC from the PCM memory using the WDS or equivalent.


• Perform the "KOER self-test".


(SeeKOEO/KOER SELF TEST [ZY].)


• Is the DTC P2504 present?

 |


Yes

 |


Replace the PCM, then go to the next step.


 |
|

No

 |


Go to the next step.

 |
||
|

8

 |


VERIFY AFTER REPAIR PROCEDURE

• Perform the "AFTER REPAIR PROCEDURE".


(See AFTER REPAIR PROCEDURE [ZY].)


• Are any DTCs present?

 |


Yes

 |


Go to the applicable DTC inspection.


(See DTC TABLE [ZY].)

 |
|

No

 |


DTC troubleshooting completed.

 |
||
