1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [ZY].)
3. Remove the splash shield. (See DRIVE BELT REPLACEMENT [ZY].)
4. Position the A/C compressor out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
5. Disconnect the lower radiator hose from the radiator.

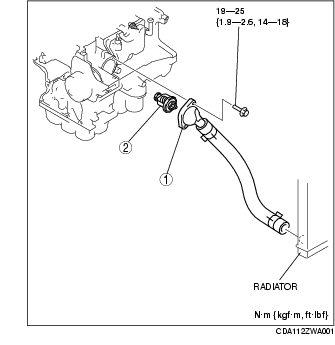

6. Remove in the order indicated in the table.
|
1
|
Thermostat cover
|
|
2
|
Thermostat
(See Thermostat Installation Note.)
|
7. Install in the reverse order of removal.
8. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [ZY].)
9. Inspect the system for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [ZY].)

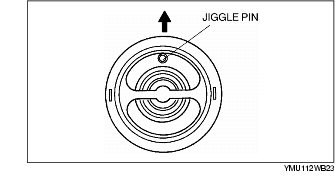

1. Install the thermostat into the thermostat case with the jiggle pin at the top.
