FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [ZY]


id0114008030c7

Warning
• Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure", while referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [ZY].)
Caution
• If there is foreign material on the connecting area of the quick release connector, it might damage the connector or fuel pipe. To prevent this, disconnect the connector and clean the connecting area before connecting.

1. Complete the "BEFORE REPAIR PROCEDURE". (See BEFORE SERVICE PRECAUTION [ZY].)

2. Disconnect the negative battery cable.

3. Lift up the vehicle.

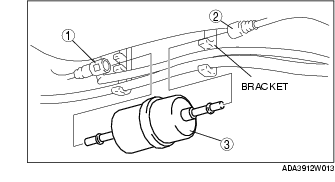

4. Remove in the order indicated in the table.

1
Quick release connector
2
Quick release connector
3
Fuel filter (high-pressure)

5. Install in the reverse order of removal.

6. Complete the "AFTER REPAIR PROCEDURE". (See AFTER SERVICE PRECAUTION [ZY].)

Quick Release Connector Removal Note

1. The quick release connector can be disconnected easily after the fuel filter (high-pressure) is removed from the bracket.
