1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Joint shaft
|
|
2
|
Dust seal (LH)
|
|
3
|
Bearing
(See Bearing Assembly Note)
|
|
4
|
Dust seal (RH)
|
|
5
|
Bracket
|
1. Remove the joint shaft using a press.

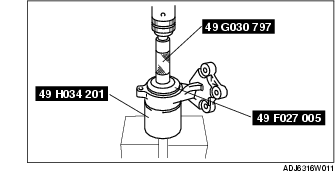

1. Remove the dust seal (LH) and bearing using the SSTs.

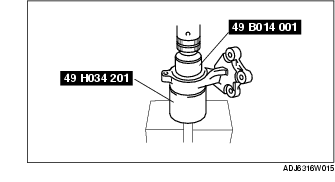

2. If the bearing remains on the joint shaft, set the SST and joint shaft to the press.

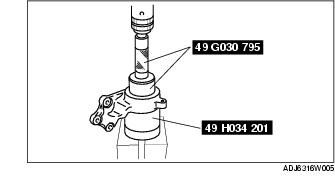

1. Remove the dust seal (RH) using the SSTs.
1. Apply grease to a new dust seal lip.
2. Install the dust seal (RH) using the SSTs.

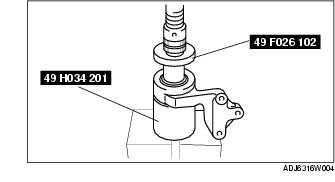

1. Install a new bearing using the SSTs.
1. Apply grease to a new dust seal lip.
2. Install a new dust seal (LH) using the SSTs and steel plate.
1. Press the joint shaft in using the SST and a press.
