CLUTCH PEDAL REMOVAL/INSTALLATION

id051000801200

1.  Disconnect the negative battery cable.

2.  Separate the steering shaft.

3.  Remove the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZY].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

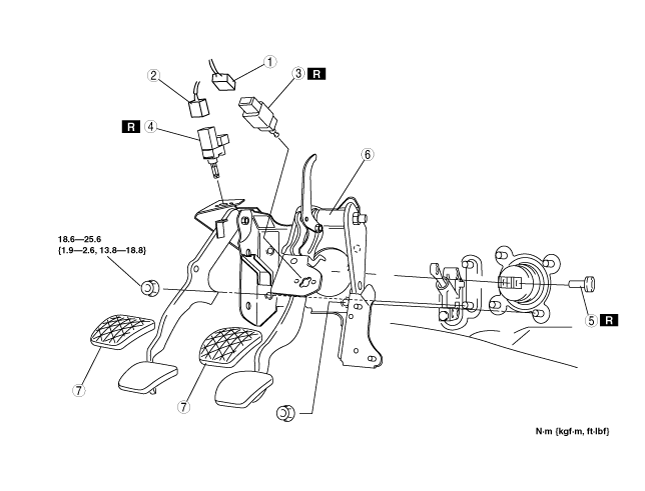

am2zzw00005295

1	Brake switch connector (See BRAKE PEDAL REMOVAL/INSTALLATION.)
2	Clutch switch connector
3	Brake switch (See BRAKE PEDAL REMOVAL/INSTALLATION.)
4	Clutch switch (See Clutch Switch Installation Note.)
5	Joint pin (See BRAKE PEDAL REMOVAL/INSTALLATION.)
6	Pedal assembly (See Pedal Assembly Installation Note.)
7	Pedal pad

Pedal Assembly Installation Note

1.  Begin to tighten with nut A.

am2zzw00005296

2.  After installing the pedal assembly, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION. )

Clutch Switch Installation Note

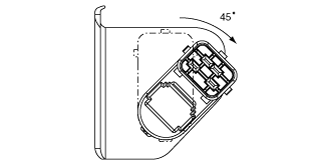

1.  Insert the new clutch switch into hole of the pedal bracket until the switch stops.

2.  Rotate the clutch switch 45° clockwise.

am2zzw00005297

3.  Verify that the clutch switch is locked securely.
