1. Disassemble in the order indicated in the table.
|
1
|
Air intake wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
2
|
Air mix wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
3
|
Airflow mode wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
4
|
Illumination bulb
|
|
5
|
Fan switch
|
|
6
|
Body
|
2. Assemble in the reverse order of disassembly.

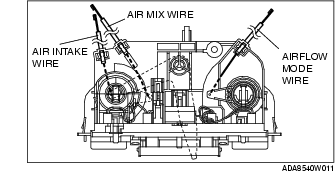

1. Disassemble the wires in the shown in the figure.
1. Assemble the wires to the position as shown in the figure.
