REAR SEAT DISASSEMBLY/ASSEMBLY
id091300800500
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

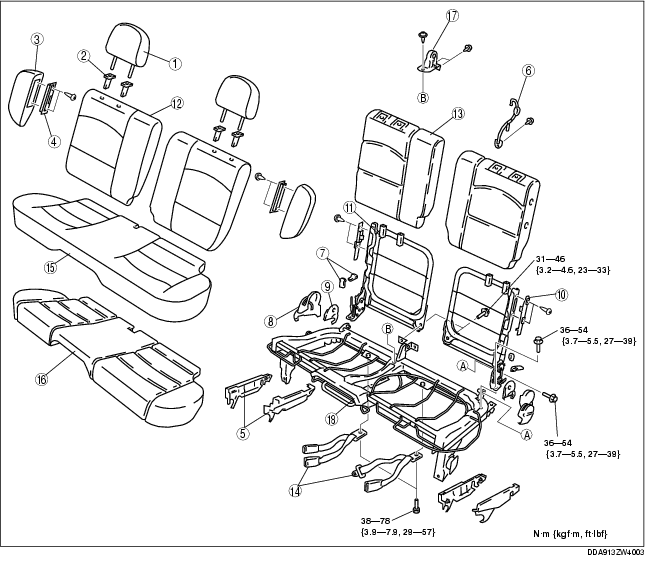

Type A
.
|
1
|
Headrest
|
|
2
|
Pole guide
|
|
3
|
Shoulder rest
|
|
4
|
Support plate
|
|
5
|
Lower cover
|
|
6
|
Seat band
|
|
7
|
Recliner lever knob
|
|
8
|
Recliner cover
|
|
9
|
Reverse cover
|
|
10
|
Plate
|
|
11
|
Seat back frame
|
|
12
|
Seat back trim
|
|
13
|
Seat back pad
|
|
14
|
Rear buckle
|
|
15
|
Seat cushion trim
|
|
16
|
Seat cushion pad
|
|
17
|
Center hinge cover
|
|
18
|
Seat cushion frame
|

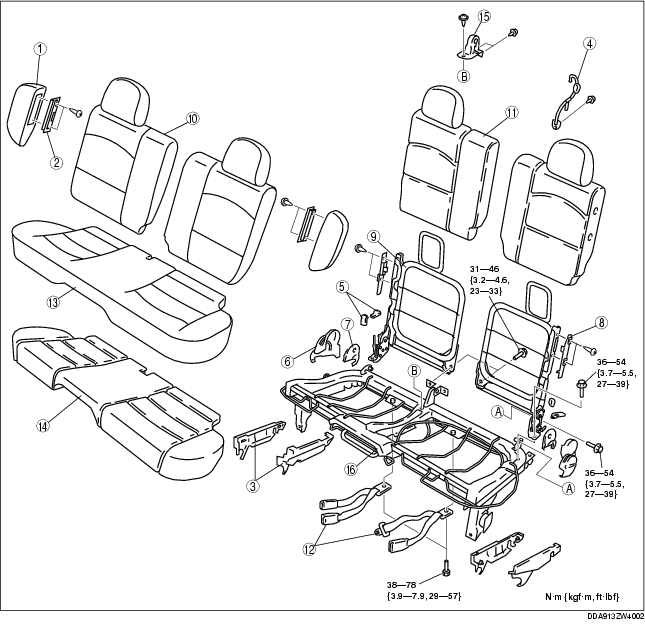

Type B
.
|
1
|
Shoulder rest
|
|
2
|
Support plate
|
|
3
|
Lower cover
|
|
4
|
Seat band
|
|
5
|
Recliner lever knob
|
|
6
|
Recliner cover
|
|
7
|
Reverse cover
|
|
8
|
Plate
|
|
9
|
Seat back frame
|
|
10
|
Seat back trim
|
|
11
|
Seat back pad
|
|
12
|
Rear buckle
|
|
13
|
Seat cushion trim
|
|
14
|
Seat cushion pad
|
|
15
|
Center hinge cover
|
|
16
|
Seat cushion frame
|
Reverse Cover Removal Note
1. Remove the bolts, then remove the seat back from the seat cushion frame.
2. Remove the reverse cover from the seat back.
