COWL GRILLE REMOVAL/INSTALLATION


id091600444000

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

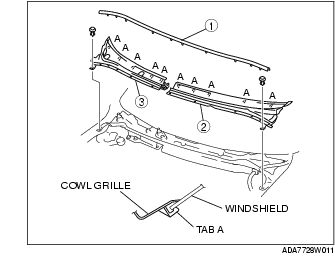

2. Remove in the order indicated in the table.

1
Weatherstrip
2
Cowl grille (LH)
3
Cowl grille (RH)

3. Install in the reverse order of removal.

Cowl Grille (RH) Removal Note

1. Pull the cowl grille toward vehicle front, and remove the clip from the pin (cowl panel).

2. Remove the cowl grille.
