HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION


id091800464200

1. Disconnect the negative battery cable.

2. Remove the side panel.

3. Remove in the order indicated in the table.

1
Headlight leveling switch
2
Connector

4. Install in the reverse order of removal.

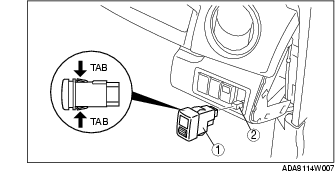

Headlight Leveling Switch Removal Note

1. Insert your hand into the dashboard from where the driver-side side panel was removed, and squeeze the tabs of the headlight leveling switch.

2. Pull the headlight leveling switch outward to remove it.
