INTERIOR LIGHT REMOVAL/INSTALLATION


id091800466100

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

1
Interior light
2
Connector
3
Lens
4
Interior light bulb

3. Install in the reverse order of removal.

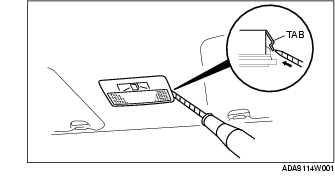

Interior Light Removal Note

1. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the interior light.

2. Push the tabs, then remove the interior light.

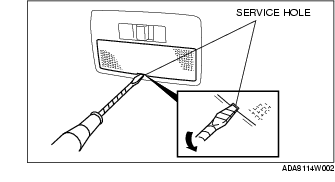

Lens Removal Note

1. Insert a tape-wrapped flathead screwdriver into the service hole and push it in the direction indicated by the arrow, then remove the lens.
