COMBINATION SWITCH DISASSEMBLY/ASSEMBLY


id091800469300

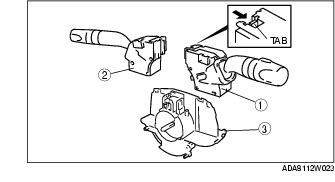

1. Disassemble in the order indicated in the table.

1
Light switch
2
Wiper and washer switch
3
Body

2. Assemble in the reverse order of disassembly.

Light Switch (Wiper and Washer Switch) Assembly Note

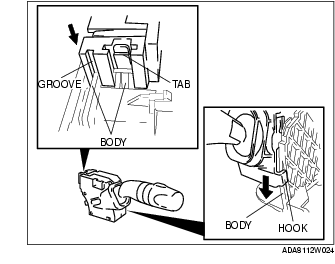

1. Set the light switch (wiper and washer switch) groove and hook at the positions indicated in the figure, and insert them into the body.

2. Insert the light switch until the light switch tab is engaged with the body.
