1. Disconnect the negative battery cable.
2. Remove the column cover.

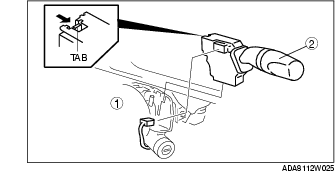

3. Remove in the order indicated in the table.
|
1
|
Connector
(See Connector Installation Note.)
|
|
2
|
Light switch
|
4. Install in the reverse order of removal.
1. Insert the light switch wiring harness shown in the figure into the clock spring hook.

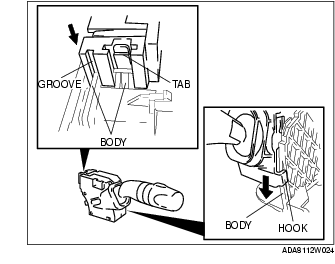

1. Set the light switch groove and hook at the positions indicated in the figure, and insert them into the body.
2. Insert the light switch until the light switch tab is engaged with the body.
