RELAY BLOCK REMOVAL/INSTALLATION


id092100492600

1. Disconnect the negative battery cable.

2. Remove the glove compartment No.1. (See GLOVE COMPARTMENT NO.1 REMOVAL/INSTALLATION.)

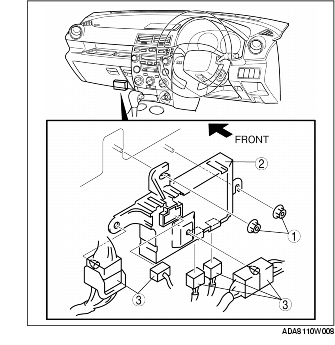

3. Remove in the order indicated in the table.

1
Nut
2
Relay block
3
Connector

4. Install in the reverse order of removal.
