CYLINDER HEAD (II) DISASSEMBLY

id011000500500

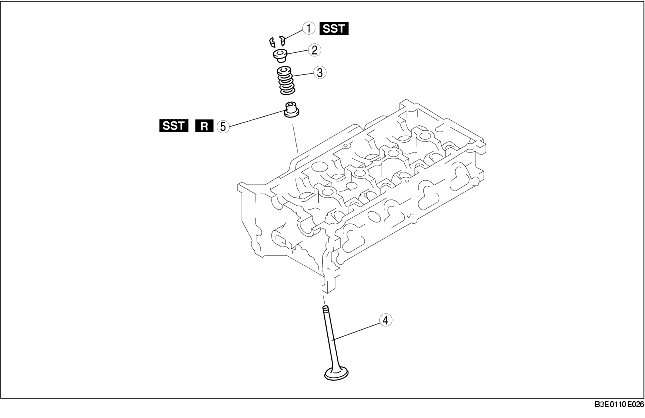

1. Disassemble in the order indicated in the table.


1	Valve keeper (See Valve Keeper Disassembly Note)
2	Upper valve spring seat
3	Valve spring
4	Valve
5	Valve seal (See Valve Seal Disassembly Note)

Valve Keeper Disassembly Note

1. Remove the valve keeper using the SSTs.

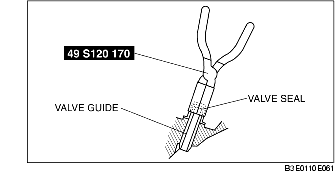

1. Remove the valve seal using the SST.
