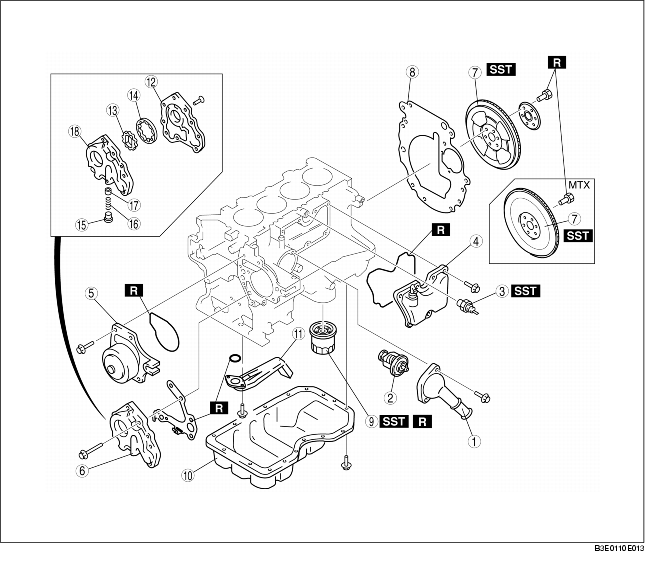

1. Disassemble in the order indicated in the table.
.
|
1
|
Thermostat cover
|
|
2
|
Thermostat
|
|
3
|
Knock sensor
|
|
4
|
Oil separator
|
|
5
|
Water pump
|
|
6
|
Oil pump
|
|
7
|
Drive plate (ATX), flywheel (MTX)
|
|
8
|
End plate
|
|
9
|
Oil filter
|
|
10
|
Oil pan
(See Oil Pan Disassembly Note)
|
|
11
|
Oil strainer
|
|
12
|
Oil pump cover
|
|
13
|
Inner rotor
|
|
14
|
Outer rotor
|
|
15
|
Plunger plug
|
|
16
|
Plunger spring
|
|
17
|
Control plunger
|
|
18
|
Oil pump body
|

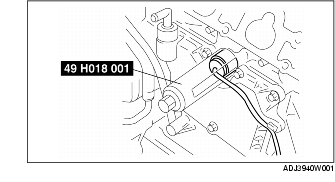

1. Remove the knock sensor using the SST.
1. Lock the drive plate (ATX) or flywheel (MTX) against rotation using the SST.
2. Remove the drive plate or flywheel installation bolts.

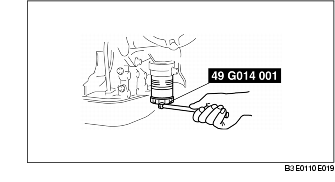

1. Remove the oil filter using the SST.

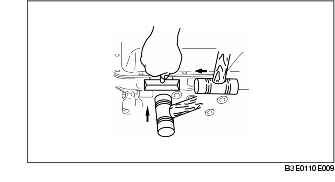

1. Remove the oil pan using a separator tool.
