1. Assemble in the order indicated in the table.
|
1
|
Valve seal
(See Valve Seal Assembly Note)
|
|
2
|
Valve
|
|
3
|
Valve spring
|
|
4
|
Upper valve spring seat
|
|
5
|
Valve keeper
|

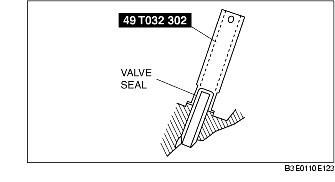

1. Press in the valve seal to the valve guide by hand.
2. Tap the SST shown in the figure using a plastic hammer.

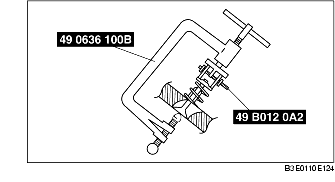

1. Install the valve keeper using the SST.
