PRIMARY SHAFT COMPONENTS DISASSEMBLY
B3E051517201102
1. Disassemble in the order indicated in the table.
|
1
|
Bearing (4th gear end)
|
|
2
|
4th gear
|
|
3
|
4th synchronizer ring
|
|
4
|
Retaining ring
|
|
5
|
3rd/4th clutch hub component
|
|
6
|
3rd synchronizer ring
|
|
7
|
3rd gear
|
|
8
|
Bearing (primary shaft end)
|
|
9
|
Primary shaft gear
|
|
10
|
Synchronizer key spring
|
|
11
|
3rd/4th clutch hub sleeve
|
|
12
|
Synchronizer key
|
|
13
|
3rd/4th clutch hub
|
Bearing (4th Gear End) Disassembly Note

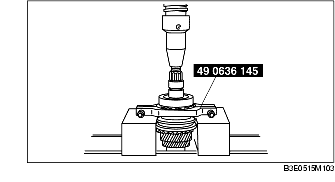

1. Remove the bearing using the SST.
3rd/4th Clutch Hub Component, 3rd Synchronizer Ring and 3rd Gear Disassembly Note
1. Remove the retaining ring.

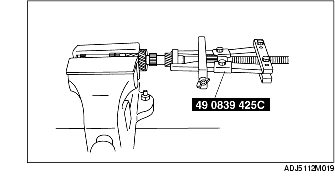

2. Remove the 3rd/4th clutch hub component, 3rd synchronizer ring, and 3rd gear using the SST.
Bearing (Primary Shaft End) Disassembly Note
1. Remove the bearing using the SST.
-
Caution
-
• Use protective plates in the vise to prevent damage to the primary shaft gear.
