DIFFERENTIAL DISASSEMBLY
B3E051527100102

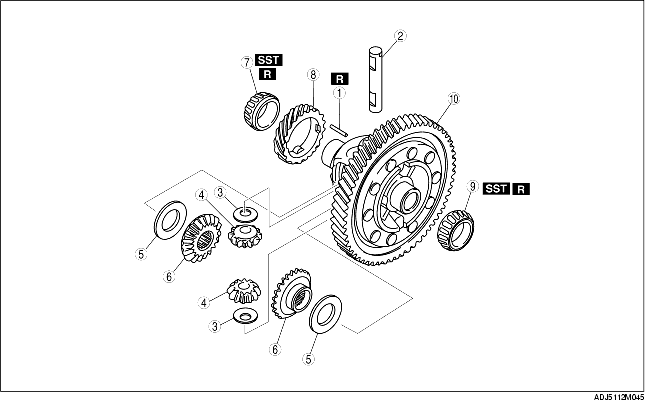

1. Disassemble in the order indicated in the table.
|
1
|
Roll pin
|
|
2
|
Pinion shaft
|
|
3
|
Thrust washer
|
|
4
|
Pinion gear
|
|
5
|
Thrust washer
|
|
6
|
Side gear
|
|
7
|
Bearing (side opposite ring gear)
|
|
8
|
Speedometer drive gear
|
|
9
|
Bearing (ring gear side)
|
|
10
|
Ring gear and gear case component
|

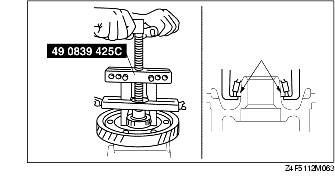

Bearing (Side Opposite Ring Gear) Disassembly Note
1. Remove the bearing using the SSTs.

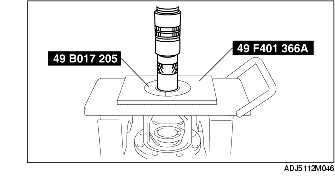

Bearing (Ring Gear Side) Disassembly Note
1. Remove the bearing using the SST.
