DTC P2128:00 [ZJ, ZY]

id0102c0708600

DTC P2128:00

APP sensor No.2 circuit high input
DETECTION CONDITION
•  If the input voltage is 4.8 V or more, the PCM determines that the APP sensor No.2 circuit input voltage is high.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  APP sensor connector or terminals malfunction
•  PCM connector or terminals malfunction
•  Short to power supply in wiring harness between APP sensor terminal C and PCM terminal 1AD
•  APP sensor No.2 power supply circuit and signal circuit are shorted to each other
•  Open circuit in wiring harness between APP sensor terminal B and PCM terminal 1C
•  APP sensor No.2 malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT APP SENSOR CONNECTOR AND TERMINALS
•  Turn the ignition switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 9.
No
Go to the next step.
4
INSPECT PCM CONNECTOR AND TERMINALS
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 9.
No
Go to the next step.
5

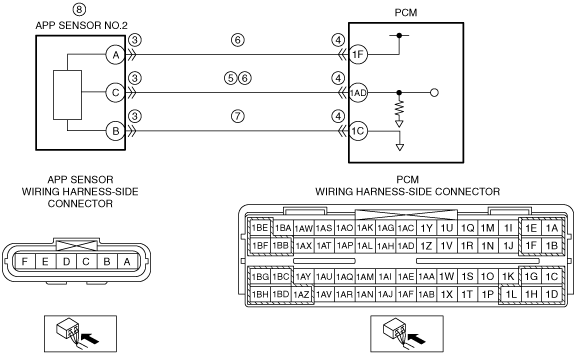

INSPECT APP SENSOR NO.2 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  APP sensor and PCM connectors are disconnected.
•  Turn the ignition switch to the ON position (engine off).
•  Measure the voltage between APP sensor terminal C (wiring harness-side) and body ground.
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
No
Go to the next step.
6
INSPECT APP SENSOR NO.2 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO EACH OTHER
•  APP sensor and PCM connectors are disconnected.
•  Turn the ignition switch off.
•  Inspect for continuity between APP sensor terminals A and C (wiring harness-side).
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to each other, then go to Step 9.
No
Go to the next step.
7
INSPECT APP SENSOR NO.2 GROUND CIRCUIT FOR OPEN CIRCUIT
•  APP sensor and PCM connectors are disconnected.
•  Inspect for continuity between APP sensor terminal B (wiring harness-side) and PCM terminal 1C (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
8
INSPECT APP SENSOR NO.2
•  Reconnect APP sensor and PCM connectors.
•  Inspect the APP sensor No.2.
•  Is there any malfunction?
Yes
Replace the accelerator pedal, then go to the next step.
(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZJ, ZY].)
No
Go to the next step.
9
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO/KOER self test.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [ZJ, ZY].)
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ZJ, ZY].)
No
DTC troubleshooting completed.
