IGNITION COIL REMOVAL/INSTALLATION [ZJ, ZY]

id011815800200

1.  Disconnect the negative battery cable.

2.  Perform the following procedure.

Except U.K. specs.

1.  Remove the fresh-air duct and air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)

U.K. specs.

1.  Set the air cleaner cover out of the way. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)

2.  Remove the fresh-air duct and air cleaner case as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

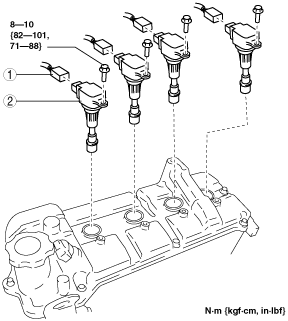

am2zzw00001729

1	Connector
2	Ignition coil
