FRONT LOWER ARM REMOVAL/INSTALLATION

id021300122900

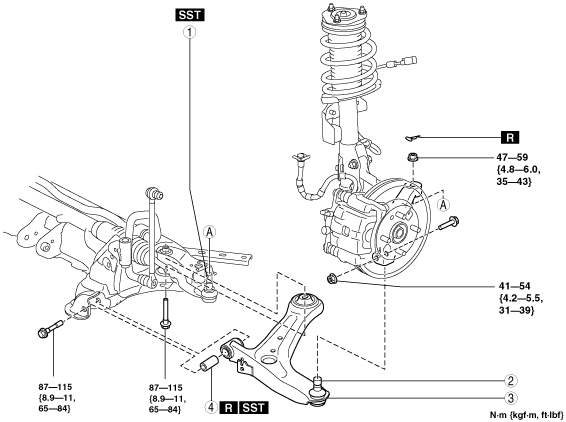

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

am2zzw00002092

Lower Arm Bushing Removal Note

1. Cut off one side of the bushing knob.

adejjw00001817

2. Remove the lower arm bushing using a vise and the SSTs.

am2zzw00001553

Lower Arm Bushing Installation Note

1. Press fit approximately half of the bushing using a vise and the SST.

am2zzw00001554

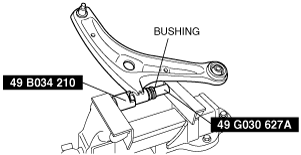

2. Press fit the bushing using a vise and the SSTs.

am2zzw00001555

1	Tie-rod end (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
2	Lower arm ball joint
3	Lower arm
4	Lower arm bushing (See Lower Arm Bushing Removal Note .) (See Lower Arm Bushing Installation Note.)
