FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION

id041200801200

1.  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

2.  Remove the adjusting nut.

am2zzw00004042

3.  Remove the middle pipe or presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

4.  Remove the insulator No.1. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

5.  Remove the front parking brake cable from the equalizer.

am2zzw00004043

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

8.  After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

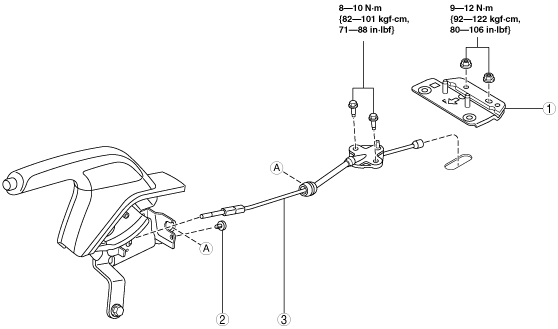

L.H.D.

am2zzw00004044

1
Bracket
2
Clip
(See PARKING BRAKE LEVER REMOVAL/INSTALLATION [L.H.D.].)
3
Front parking brake cable
(See Front Parking Brake Cable Removal Note.)

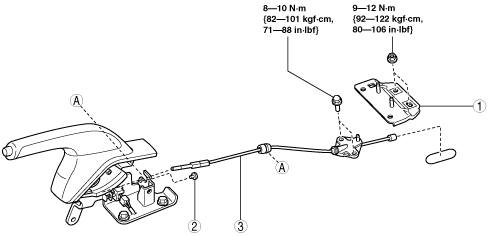

R.H.D.

am2zzw00004045

1
Bracket
2
Clip
(See PARKING BRAKE LEVER REMOVAL/INSTALLATION [R.H.D.].)
3
Front parking brake cable
(See Front Parking Brake Cable Removal Note.)


Front Parking Brake Cable Removal Note

1.  Separate the floor mat at the area shown in the figure.

am2zzw00004046

2.  Remove the front parking brake cable.
