CLUTCH PEDAL INSPECTION [B65M-R]

id0510h3801100

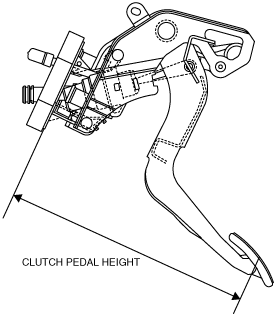

Clutch Pedal Height Inspection

1.  Measure the distance from the center of the upper surface of the pedal pad to the floor covering.

•  If the clutch pedal height is not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R].)

am2zzw00004067

Clutch Pedal Free Play Inspection

1.  Depress the clutch pedal by hand until clutch resistance is felt.

•  If the clutch pedal free play is not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R].)

am2zzw00004068

Clutch Pedal Disengagement Point Inspection

Warning

•  When performing the following procedure, make sure that the area around the vehicle is free of people or objects as the vehicle might move suddenly.

1.  Apply the parking brake and fix the front and rear of the wheels with wheel chocks.

2.  Start the engine at idle.

3.  Without depressing the clutch pedal, move the shift lever slowly to the reverse position.

4.  Hold the lever when the gear noise is heard.

5.  Depress the clutch pedal slowly.

6.  Hold the pedal when the gear noise stops (clutch pedal disengagement point).

7.  Measure the clutch pedal travel distance between the released and disengage point (A), and the pedal stroke distance (B).

•  If the point at which the clutch disengages or the pedal stroke is not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R].)

am2zzw00004069

Clutch Pedal Position Switch Inspection

1.  Disconnect the negative battery cable.

2.  Disconnect the clutch pedal position switch connector.

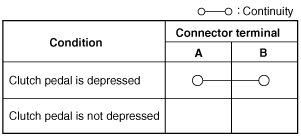

3.  Verify that the continuity is as indicated in the table.

am2zzw00003277

am2zzw00004070

•  If there is any malfunction, replace the clutch pedal position switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R].)
