MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R]
id0516h3800200
1. Disconnect the negative battery cable.
2. Remove the battery, battery cover and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
3. Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)(See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
4. Remove the front pipe and middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)(See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
5. Remove the exhaust system insulator as shown in the figure. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)(See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
am2zzw00003085
|
6. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
7. Remove the shift lever knob.
am2zzw00004101
|
8. Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
9. Remove the keyless antenna (vehicle interior, front). (vehicles with advanced keyless and start system) (See KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
10. Remove in the order indicated in the table.
11. Install in the reverse order of removal.
12. After installation, verify that the shift lever can be shifted smoothly into each position.

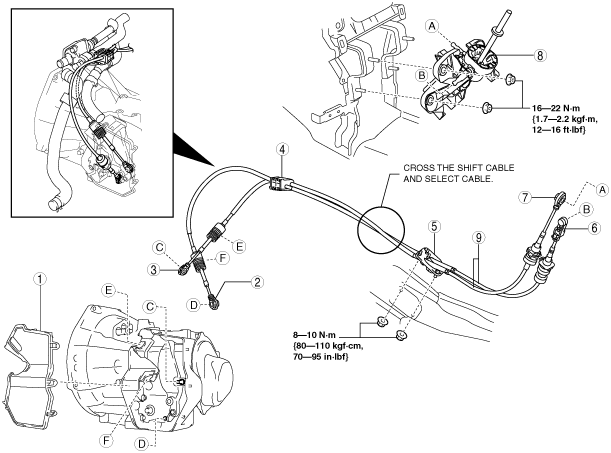

am2zzw00003278
|
|
1
|
Cable box cover
|
|
2
|
Select cable end (transaxle side)
|
|
3
|
Shift cable end (transaxle side)
|
|
4
|
Cable clip
|
|
5
|
Seal plate
|
|
6
|
Select cable end (shift lever side)
|
|
7
|
Shift cable end (shift lever side)
|
|
8
|
Shift lever component
|
|
9
|
Main cable component
|
Shift Cable and Main Select Cable Removal Note
1. Remove the both shift cable end and select cable end using a fastener remover.
am2zzw00004102
|
2. Remove the shift and select cable in the order shown in the figure.
am2zzw00002904
|
Main cable component Removal Note
1. Working with two people, one person pushes the ends of the shift cable and selector cable (transaxle side) toward the inside of the vehicle, and at the same time, the other person pulls out the main cable component by pulling the ends of the shift cable and selector cable (shift lever side).
am2zzw00004103
|

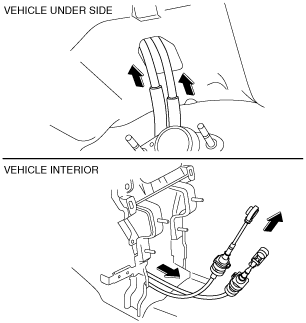

Main cable component Installation Note
1. Working with two people, one person pushes the ends of the shift cable and selector cable (shift lever side) toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the shift cable and selector cable (transaxle side), and installs the seal plate.
am2zzw00000210
|
Select Cable Installation Note
1. Make sure that the shift lever (transaxle side) is in neutral.
2. Push the safety lock, then unlock the lock piece of the select cable in the order shown in the figure.
am2zzw00004104
|
3. Shift the shift lever to neutral.
4. Lock the lock piece of the selector cable shown in the figure.
am2zzw00004105
|
5. Shift the shift lever from neutral to another position, and make sure that there are no other components in that area to interfere with the lever.
