TRANSAXLE RANGE (TR) SWITCH INSPECTION

id051700800900

Operating Inspection

1.  Verify that the starter operates only when the ignition switch is turned to the START position with the selector lever in P or N position.

2.  Verify that the back-up lights illuminate when shifted to R position with the ignition switch at the ON position.

3.  Verify that the positions of the selector lever and the indicator are aligned.

•  If there is any malfunction, adjust the TR switch.(See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT.)

Continuity Inspection

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

1.  Disconnect the TR switch connector.

(1)  Disconnect the negative battery cable.

(2)  Disconnect the TR switch connector.

am2zzw00001027

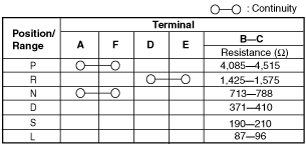

2.  Verify continuity as indicated in the table.

•  If there is any malfunction, adjust the TR switch.(See TRANSAXLE RANGE (TR) SWITCH REMOVAL.)(See TRANSAXLE RANGE (TR) SWITCH INSTALLATION.)

am2zzw00001028

am2zzw00001029
