POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1800200

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

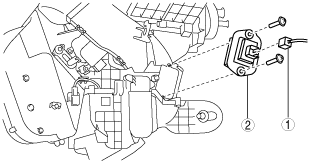

am2zzw00001068

1	Connector
2	Power MOS FET

3.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Heat duct (LH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)

3.  Disconnect the evaporator temperature sensor connector.

4.  Remove in the order indicated in the table.

adejjw00001454

1	Connector
2	Power MOS FET

5.  Install in the reverse order of removal.
