DTC B10A5:12 [ADVANCED KEYLESS AND START SYSTEM]

id0902e1387600

Detection Condition

• Keyless beeper output voltage abnormal

Possible Causes

• Open or short circuit in wiring harness between keyless beeper and keyless control module

• Keyless beeper malfunction

• Keyless control module malfunction

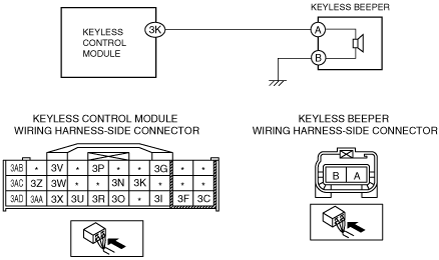

System Wiring Diagram

am2zzw00000888

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT KEYLESS BEEPER CONNECTOR

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the keyless beeper.

•  Inspect the keyless beeper connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the keyless beeper connector or terminal.

2

INSPECT KEYLESS CONTROL MODULE CONNECTOR

•  Disconnect the keyless control module connector.

•  Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the keyless control module connector or terminal.

3

INSPECT WIRING HARNESS BETWEEN KEYLESS BEEPER AND KEYLESS CONTROL MODULE

•  Inspect the wiring harness between the keyless beeper connector terminal A and keyless control module connector terminal 3K for the following:

―  Short to body ground

―  Short to power supply

―  Open circuit

•  Is the wiring harness normal?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the keyless beeper and the keyless control module.

4

INSPECT WIRING HARNESS BETWEEN KEYLESS BEEPER AND GROUND

•  Measure the continuity of the wiring harness between keyless beeper connector terminal B and ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the keyless beeper and the ground.

5

INSPECT KEYLESS BEEPER

•  Inspect the keyless beeper.
(See KEYLESS BEEPER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is the keyless beeper normal?

Yes

Go to the next step.

No

Replace the keyless beeper.

(See KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

6

Verify DTCs

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].)

•  Verify DTCs using the M-MDS.
(See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is DTC B10A5:12 displayed?

Yes

Replace the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	INSPECT KEYLESS BEEPER CONNECTOR • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the keyless beeper. • Inspect the keyless beeper connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the keyless beeper connector or terminal.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR • Disconnect the keyless control module connector. • Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
2		No	Repair/replace the keyless control module connector or terminal.
3	INSPECT WIRING HARNESS BETWEEN KEYLESS BEEPER AND KEYLESS CONTROL MODULE • Inspect the wiring harness between the keyless beeper connector terminal A and keyless control module connector terminal 3K for the following: ― Short to body ground ― Short to power supply ― Open circuit • Is the wiring harness normal?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness between the keyless beeper and the keyless control module.
4	INSPECT WIRING HARNESS BETWEEN KEYLESS BEEPER AND GROUND • Measure the continuity of the wiring harness between keyless beeper connector terminal B and ground. • Is there continuity?	Yes	Go to the next step.
4		No	Repair or replace the wiring harness between the keyless beeper and the ground.
5	INSPECT KEYLESS BEEPER • Inspect the keyless beeper. (See KEYLESS BEEPER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is the keyless beeper normal?	Yes	Go to the next step.
5		No	Replace the keyless beeper. (See KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
6	Verify DTCs • Reconnect the disconnected connectors. • Connect the negative battery cable. • Clear DTCs using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].) • Verify DTCs using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is DTC B10A5:12 displayed?	Yes	Replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
6		No	DTC troubleshooting completed.
