KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004406b0

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

am2zzw00000554

6.  Remove the nuts.

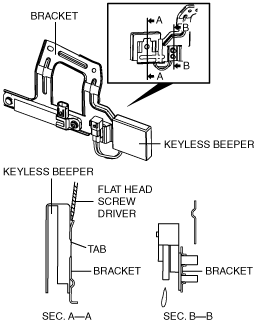

7.  Press the keyless beeper tab aside using a tape-wrapped flathead screwdriver.

am2zzw00000555

8.  Remove the keyless beeper from the bracket.

9.  Install in the reverse order of removal.
