DTC B10A5:87 [THEFT-DETERRENT SYSTEM]

id0902g7850500

Detection Condition

• Communication error between theft-deterrent siren and theft-deterrent control module

Possible Causes

• Open or short circuit to wiring harness between theft-deterrent siren and theft-deterrent control module

• Theft-deterrent siren malfunction

• Theft-deterrent control module malfunction

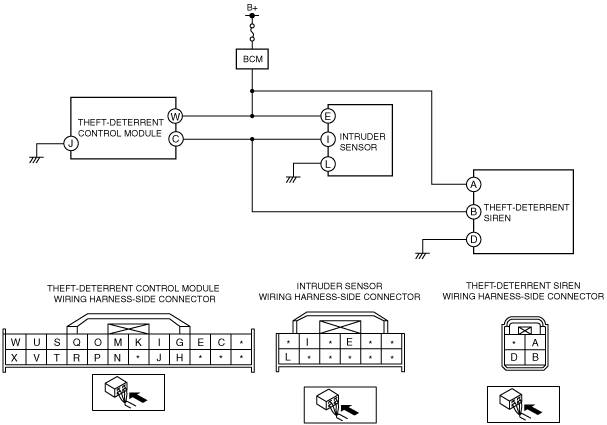

System Wiring Diagram

am2zzw00000779

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT THEFT-DETERRENT SIREN CONNECTOR

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the theft-deterrent siren connector.

•  Inspect the theft-deterrent siren connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the theft-deterrent siren connector or terminal.

2

INSPECT THEFT-DETERRENT CONTROL MODULE CONNECTOR

•  Disconnect the theft-deterrent control module connector.

•  Inspect the theft-deterrent control module connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the theft-deterrent control module connector or terminal.

3

INSPECT WIRING HARNESS BETWEEN THEFT-DETERRENT SIREN AND THEFT-DETERRENT CONTROL MODULE

•  Inspect the wiring harness between theft-deterrent siren connector terminal B and theft-deterrent control module connector terminal C for the following:

―  Short to body ground

―  Short to power supply

―  Open circuit

•  Is the wiring harness normal?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the theft-deterrent siren and the theft-deterrent control module.

4

INSPECT THEFT-DETERRENT SIREN

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable.

•  Turn the ignition switch to the ON position.

•  Inspect the theft-deterrent siren.
(See THEFT-DETERRENT SIREN INSPECTION.)

•  Is the theft-deterrent siren normal?

Yes

Replace the theft-deterrent siren, then go to the next step.

(See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)

No

Go to the next step.

5

INSPECT DTCs

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [THEFT-DETERRENT SYSTEM].)

•  Verify DTCs using the M-MDS.
(See DTC INSPECTION [THEFT-DETERRENT SYSTEM].)

•  Is DTC B10A5:87 displayed again?

Yes

Replace the theft-deterrent system control module.

(See THEFT-DETERRENT CONTROL MODULE REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.
