THEFT-DETERRENT CONTROL MODULE REMOVAL/INSTALLATION


id091400820800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (driver's side)(5HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front scuff plate (driver's side)(3HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
(3)  Front side trim (driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(4)  Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
(5)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].)(See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
(6)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(7)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
(8)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(9)  Lower panel (Driver’s side) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

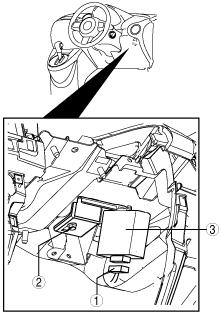

am2zzw00000450

1
Connector
2
Bolt
3
Theft-deterrent control module

4.  Install in the reverse order of removal.
