LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800465800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (3HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)

(2)  Rear scuff plate (5HB) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)

3.  Disconnect the connector.

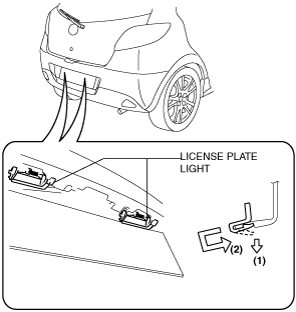

4.  Pull the tabs shown in the figure in the direction of the arrow (1) and remove them in the direction of the arrow (2).

am2zzw00002490

5.  Remove the license plate light.

6.  Install in the reverse order of removal.
