COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

id091800469300

1.  Disconnect the negative battery cable and wait 1 min or more.

2.  Remove the following parts:

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(3)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)

3.  Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

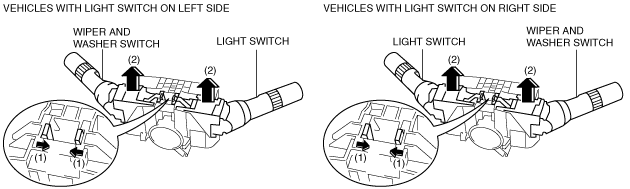

4.  Press the tabs in the direction of the arrow (1) shown in the figure, then remove the light switch, and the wiper and washer switch

am2zzw00003366

5.  Assemble in the reverse order of disassembly.
