WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900476500

1.  Remove the mudguard on the left side. (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Remove windshield washer hose No.1 from the washer tank.

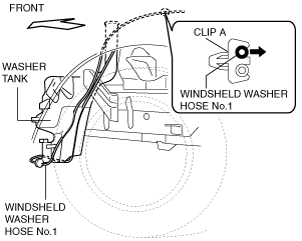

am2zzw00002245

3.  Detach clip A.

4.  Remove windshield washer hose No.1 from clip B and joint pipe A in the direction of the arrow shown in the figure.

am2zzw00002246

5.  Remove the windshield washer base No.1 from joint pipe A.

6.  Remove windshield washer hose No.1 from joint pipe A.

7.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

8.  Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

9.  Remove the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION.)

10.  Remove the windshield washer hose from the hook.

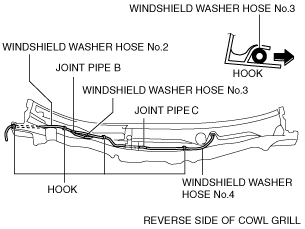

am2zzw00003735

11.  Remove windshield washer hoses No.2, No.3 and No.4 from joint pipes B and C.

12.  Install in the reverse order of removal.
