REAR WASHER NOZZLE REMOVAL/INSTALLATION

id091900476700

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

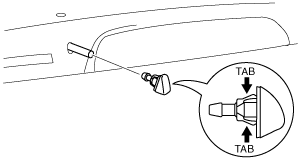

2.  Release the tabs in the direction of the arrow shown in the figure and remove the rear washer nozzle.

am2zzw00002259

3.  Install in the reverse order of removal.

4.  Adjust the spray area of the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT.)
