REAR SPEAKER REMOVAL/INSTALLATION [3HB]

id0920008024z3

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am2zzw00003282

1	Connector
2	Screw
3	Rear speaker (See Rear Speaker Removal Note.)

4.  Install in the reverse order of removal.

Rear Speaker Removal Note

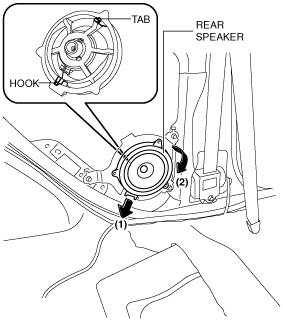

1.  Remove the rear speaker in the direction of the arrow shown in the figure.

am2zzw00003283
