Item
Specification
Speedometer
Meter type
Stepping motor type
Input signal communication system
CAN system
Input signal source
PCM
Tachometer
Meter type
Stepping motor type
Input signal communication system
CAN system
Input signal source
PCM
Fuel gauge
Meter type
Digital type
Input signal communication system
Non-multi-communication system
Input signal source
Fuel gauge sender unit
Low engine coolant temperature indicator light/High engine coolant temperature warning light
Operation
Input signal communication system
CAN system
Input signal source
PCM
Odometer/tripmeter
Display
LCD
Indication digits
Odometer: 6 digits, Tripmeter: 4 digits
Minimum display unit
(km)
Odometer: 1, Tripmeter: 0.1
Input signal communication system
CAN system
Input signal source
PCM
Warning alarm
Sound frequency
(Hz)
1,500-1,600
Output sound pressure
(dB)
55.0-87.0
Lights-on reminder warning alarm
Sound frequency
(Hz)
1,500

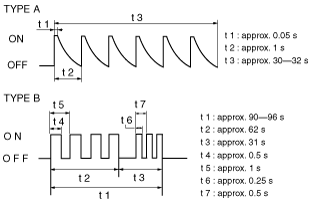

Sound cycle
Key reminder warning alarm
Sound frequency
(Hz)
1,500
Sound cycle
Seat belt warning alarm
Sound frequency
(Hz)
1,600
Sound cycle
Advanced keyless entry and start warning alarm
Sound frequency
(Hz)
1,500
Sound cycle
Air bag warning alarm
Sound frequency
(Hz)
1,500
Sound cycle
Indicator alarm
Turn and hazard indicator alarm
Output sound pressure
(dB)
52.0-62.0
Sound frequency
(Hz)
Type A: 1,700-1,800
Type B: 1,300-1,400
