BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

id094000800400

L.H.D.

Caution

• When replacing the BCM, the configuration procedure must be performed before removing the BCM. Replacing the BCM without performing the configuration procedure will result in system malfunction.

1. Perform the BCM configuration when replacing it. (See BODY CONTROL MODULE (BCM) CONFIGURATION.)

2. Disconnect the negative battery cable.

3. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

4. Remove the front scuff plate. (passenger’s side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

5. Remove the front side trim. (passenger’s side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

6. Disconnect the connectors at the position shown in the figure.

am2zzw00000255

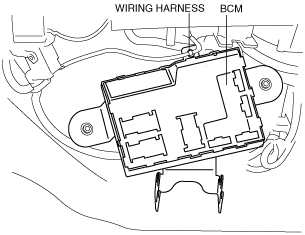

7. Disconnect the wiring harness at the position shown in the figure.

am2zzw00000256

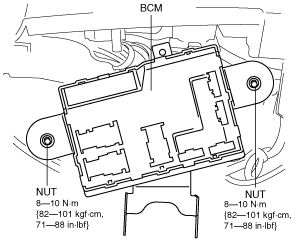

8. Remove the nuts.

am2zzw00004137

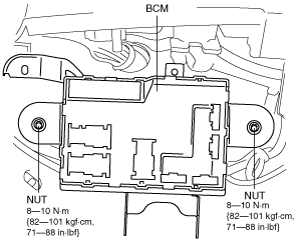

9. Remove the BCM.

10. Install in the reverse order of removal.

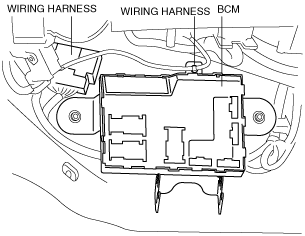

R.H.D.
