PCM TEMPERATURE SENSOR
id014000182000
Function
• To protect the PCM, the PCM temperature sensor detects the temperature of the PCM. (See A/C CUT-OFF CONTROL.)
Structure/Function

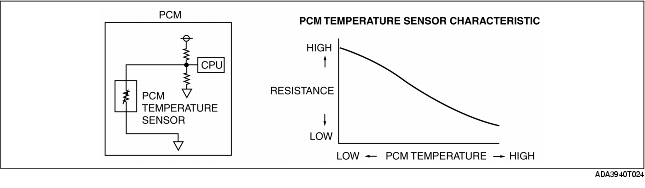

• The PCM temperature sensor is built into the PCM.
• With the thermistor, the output voltage changes according to the PCM temperature.
