ROAD TEST [FN4A-EL]
id0517a1802200
-
Warning
-
• When performing a road test, be aware of other vehicles, people, impediments, etc. to avoid an accident.
-
Note
-
• When the legal speed limit must be exceeded, use a chassis dynamometer instead of performing a road test.
Road Test Preparation
1. Inspect the engine coolant levels. (See ENGINE COOLANT LEVEL INSPECTION [ZJ, ZY].)
2. Inspect the engine oil levels. (See ENGINE OIL LEVEL INSPECTION [ZJ, ZY].)
3. Inspect the ATF levels. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FN4A-EL].)
4. Inspect the idle speed and ignition timing in P position. (See IDLE SPEED INSPECTION [ZJ, ZY (WITH WU-TWC)].) (See IDLE SPEED INSPECTION [ZJ, ZY (WITHOUT WU-TWC)].) (See IGNITION TIMING INSPECTION [ZJ, ZY].)
5. Bring up the engine and transaxle to normal operating temperature.

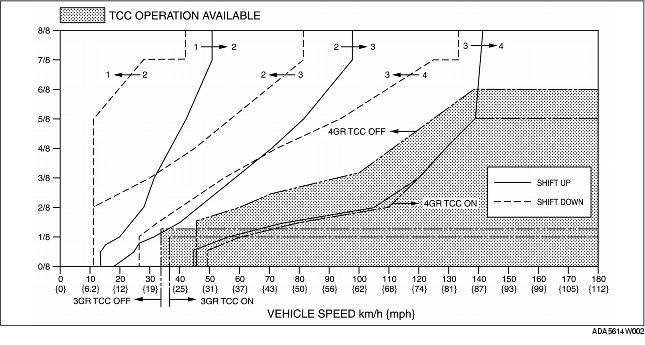

Shift Diagram
D range (normal mode)

D Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to D range.
3. Accelerate the vehicle with half and WOT, then verify that 1→2, 2→3, and 3→4 upshifts can be obtained. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
4. Drive the vehicle in 4GR, 3GR, and 2GR and verify that kickdown occurs for 4→3, 3→2, 2→1 downshifts, and that the shift points are as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
6. Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
7. Select HOLD mode.
8. Accelerate the vehicle at half throttle and WOT, and verify that 4→3, 3→2, and 2→3 shift can be obtained. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
9. Drive the vehicle in 4GR, 3GR, 2GR and verify that kickdown does not occur.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
10. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
Shift point table
Range/Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
D
|
NORMAL
|
WOT
|
D1→D2
|
50-56 {31-34}
|
5,350-5,950
|
D2→D3
|
95-103 {59-63}
|
5,400-5,850
|
D3→D4
|
139-149 {87-92}
|
5,300-5,650
|
Half throttle
|
D1→D2
|
34-41 {22-25}
|
3,550-4,450
|
D2→D3
|
62-79 {39-48}
|
3,550-4,500
|
D3→D4
|
118-140 {74-86}
|
4,500-5,300
|
TCC ON(D4)
|
118-140 {74-86}
|
3,250-3,850
|
CTP
|
D4→D3
|
24-30 {15-18}
|
700-800
|
D3→D1
|
9-15 {6-9}
|
350-550
|
Kickdown (WOT)
|
D4→D3
|
128-138 {80-85}
|
3,550-3,750
|
D3→D2
|
78-86 {49-53}
|
3,000-3,250
|
D2→D1
|
40-46 {25-28}
|
2,300-2,600
|
POWER
|
WOT
|
D1→D2
|
50-56 {31-34}
|
5,350-5,950
|
D2→D3
|
95-103 {59-63}
|
5,400-5,850
|
D3→D4
|
139-149 {87-92}
|
5,300-5,650
|
Half throttle
|
D1→D2
|
37-46 {23-28}
|
3,950-4,900
|
D2→D3
|
73-88 {46-54}
|
4,100-5,000
|
D3→D4
|
125-145 {78-89}
|
4,750-5,500
|
CTP
|
D4→D3
|
27-33 {17-20}
|
750-900
|
D3→D1
|
9-15 {6-9}
|
350-550
|
Kickdown (WOT)
|
D4→D3
|
128-138 {80-85}
|
3,550-3,750
|
D3→D2
|
78-86 {49-53}
|
3,000-3,250
|
D2→D1
|
40-46 {25-28}
|
2,300-2,600
|
HOLD
|
ALL round
|
D2→D3
|
15-25 {10-15}
|
900-1,400
|
D4→D3
|
139-145 {87-89}
|
3,850-3,950
|
D3→D2
|
7-13 {5-8}
|
300-450
|
S Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to S range.
3. Accelerate the vehicle at half throttle and WOT, then verify that 1→2 and 2→3 upshifts can be obtained. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
4. Drive the vehicle in 2GR, 3GR, 4GR and verify that kickdown occurs for 4→3, 3→2, 2→1 downshift, and that the shift point is as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR and 4GR.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
6. Select HOLD mode.
7. Accelerate the vehicle in 2GR at half throttle and WOT, and verify that 2GR is held.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
8. Decelerate the vehicle and verify that engine braking effect is felt.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
Shift point table
Range/
Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
S
|
NORMAL
|
WOT
|
S1→S2
|
50-56 {31-34}
|
5,350-5,950
|
S2→S3
|
95-103 {59-63}
|
5,400-5,850
|
Half throttle
|
S1→S2
|
37-46 {23-28}
|
3,950-4,900
|
S2→S3
|
73-88 {46-54}
|
4,100-5,000
|
CTP
|
S4→S3
|
139-145 {87-89}
|
3,850-3,950
|
S3→S1
|
9-15 {6-9}
|
350-550
|
Kickdown (WOT)
|
S3→S2
|
78-86 {49-53}
|
3,000-3,250
|
S2→S1
|
40-46 {25-28}
|
2,300-2,600
|
HOLD
|
ALL round
|
S4→S3
|
139-145 {87-89}
|
3,850-3,950
|
S3→S2
|
94-100 {59-62}
|
3,600-3,750
|
L Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to L range.
3. Accelerate the vehicle at half throttle and WOT, then verify that 1→2 upshift. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
4. Drive the vehicle in 2GR and verify that kickdown occurs for 2→1 downshift, and that the shift point is as shown in the table below.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 1GR,2GR, 3GR and 4GR.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
6. Select HOLD mode.
7. Accelerate the vehicle in 1GR at half throttle and WOT, and verify that 1GR is held.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
8. Decelerate the vehicle and verify that engine braking effect is felt.
-
• If there is any malfunction, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)
Shift point table
Range/Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
L
|
NORMAL
|
WOT
|
L1→L2
|
50-56 {31-34}
|
5,350-5,950
|
Half throttle
|
L1→L2
|
37-46 {23-28}
|
3,950-4,900
|
CTP
|
L4→L3
|
139-145 {87-89}
|
3,850-3,950
|
L3→L2
|
94-100 {59-62}
|
3,600-3,750
|
L2→L1
|
9-15 {6-9}
|
550-850
|
Kickdown (WOT)
|
L2→L1
|
40-46 {25-28}
|
2,300-2,600
|
HOLD
|
ALL round
|
L4→L3
|
139-145 {87-89}
|
3,850-3,950
|
L3→L2
|
94-100 {59-62}
|
3,600-3,750
|
L2→L1
|
40-46 {25-28}
|
2,300-2,600
|
P Position Test
1. Shift into P position on a gentle slope. Release the brake and verify that the vehicle does not roll.
