POWER STEERING OIL PUMP REMOVAL/INSTALLATION


id061400800700

1. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITHOUT WU-TWC].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WITH WU-TWC].)

2. Remove the drive belt. (See DRIVE BELT REPLACEMENT [ZJ, ZY].)

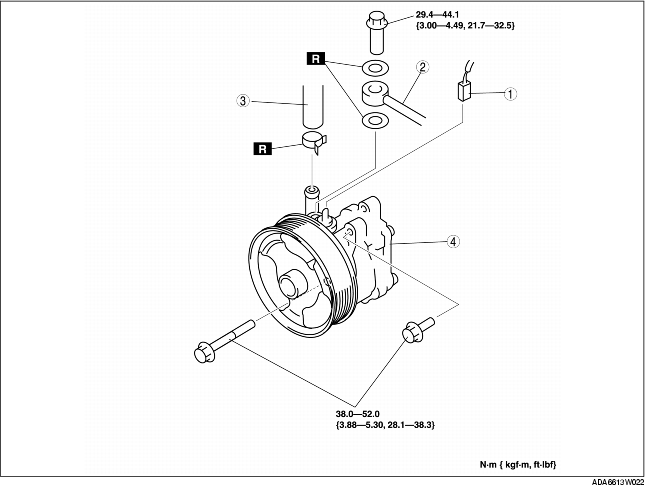

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1
Pressure switch connector
2
Pressure pipe
3
Return hose
4
Power steering oil pump
