STEERING GEAR AND LINKAGE ASSEMBLY


id061400801200

Caution
• Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

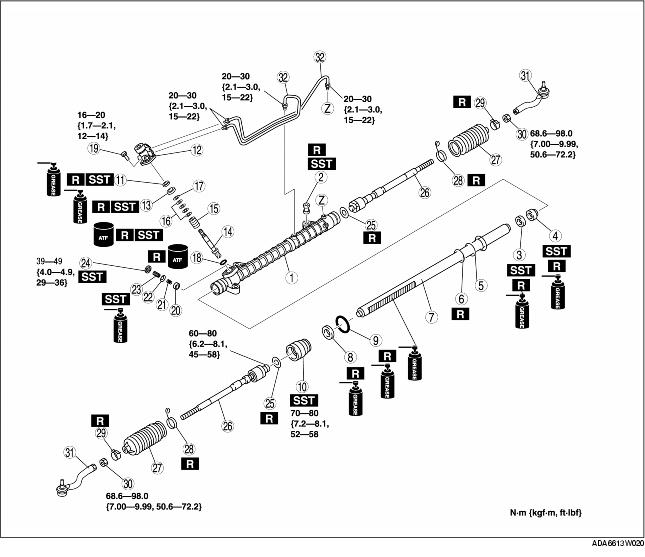

1. Assemble in the order indicated in the table.

1
Gear housing
2
Mounting rubber
3
Oil seal
4
Inner guide
5
O-ring
6
Seal ring
7
Steering rack
8
U-gasket
9
O-ring
10
Holder
11
Oil seal
12
Valve housing
13
Upper bearing
14
Pinion shaft
15
Control valve
16
Seal ring
17
Snap ring
18
O-ring
19
Bolt
20
Support yoke
21
Yoke spring
22
Spring washer
23
Adjusting cover
24
Locknut (adjusting cover)
25
Washer
26
Tie rod
27
Boot
28
Boot band
29
Boot clamp
30
Locknut
31
Tie-rod end
32
Oil pipe

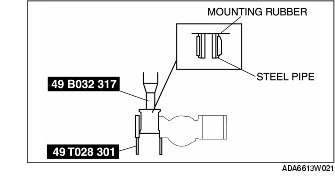

Mounting Rubber Assembly Note

1. Apply soapy water to the rubber part of the mounting rubber.

2. Install the mounting rubber so that two notches of the mounting rubber are aligned to the steering rack.

3. Press the mounting rubber using the SSTs and a press until the end of the mounting rubber comes out completely from the gear housing.

4. Reverse the gear housing, then press the mounting rubber until the end of the mounting rubber comes out completely from the other side. At this time, align the end of the mounting rubber and the steel pipe.

Oil Seal, Inner Guide Assembly Note

1. Install a new O-ring and seal ring to the piston part of the rack.

2. After installing the seal ring, seat it properly at the piston circumference.

3. Apply grease to a new oil seal and inner guide.

4. Install the oil seal to the SSTs.

5. Use the SST to move the oil seal to the edge of the steering rack piston.

6. Install the inner guide.

7. Put the steering rack into the gear box.

8. Press the oil seal and inner guide using the SSTs and a press until the force required suddenly increases.

Holder Assembly Note

1. Apply grease to a new U-gasket and O-ring.

2. Install the U-gasket and O-ring to the holder.

3. Set the SST to the steering rack, and install the holder.

4. Stake the holder to the gear housing using a punch.

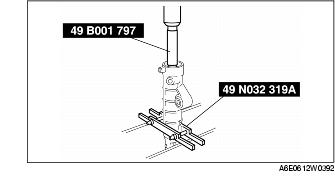

Oil Seal Assembly Note

1. Apply grease to a new oil seal.

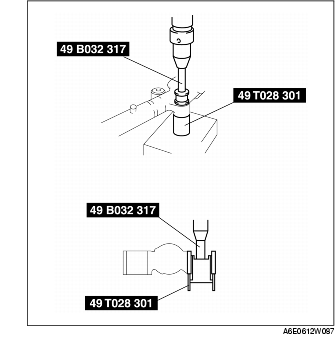

2. Press a new oil seal in using the SSTs and a press.

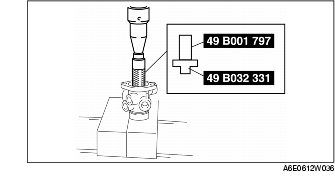

Upper Bearing Assembly Note

1. Apply grease to a new bearing.

2. Press the bearing in using the SSTs.

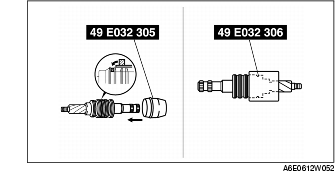

Seal Ring Assembly Note

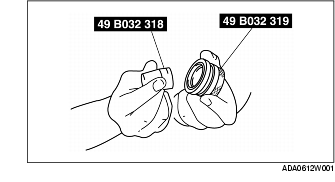

1. Install a new seal ring to the valve part of the pinion shaft using the SST.

2. Using the SST, seat the seal ring properly.

3. Install the snap ring.

Adjusting Cover Assembly Note

1. Set the rack to the center position.

2. Tighten the adjusting cover with 19.6 N·m {2 kgf·m, 14.5 ft·lbf} three times using the SST, and then turn back the adjusting cover to 44°.

3. Apply sealant to the threads of the locknut.

4. Attach the locknut.

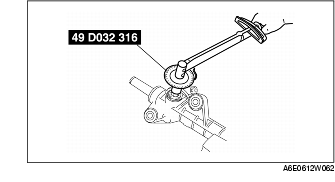

5. Measure the rotational torque using the SST and a pull scale.

Rotational torque
Center of rack ±90°: 0.78-1.18 N·m {8.0-12.1 kgf·cm, 7.0-10.4 in·lbf}
[Pull scale reading: 7.8-11.8 N {0.8-1.2 kgf, 1.8-2.6 lbf}]
Except center of rack ±90°:
1.67 N·m {17.0 kgf·cm, 14.7 in·lbf} or less
[Pull scale reading: 16.7 N {1.7 kgf, 3.75 lbf} or less]

6. If not within the specification, repeat Steps 2-5.

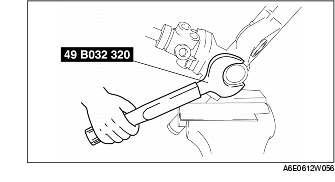

7. Install the locknut using the SST (49 B032 320).

Tightening torque
39-49 N·m {4.0-4.9 kgf·m, 29-36 ft·lbf}

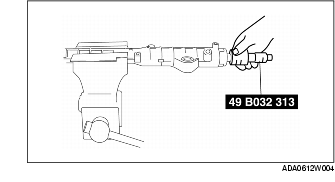

Hermetic Sealing inspection

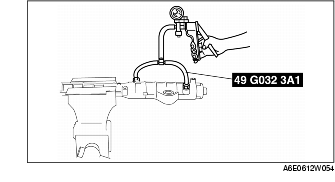

1. Connect the SST to the power cylinder section of the gear housing.

2. Apply 53.3 kPa {400 mmHg, 15.7 inHg} vacuum with a vacuum pump and verify that it is held for at least 30 s.
