CONDENSER REMOVAL/INSTALLATION

id071100801200

1. Disconnect the negative battery cable.

2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3. Drain the engine coolant. (SeeENGINE COOLANT REPLACEMENT [ZJ, ZY].)

4. Remove the radiator.

Caution

• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

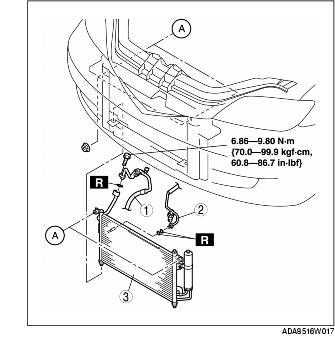

5. Remove in the order indicated in the table. Do not allow compressor oil to spill.


1	Cooler hose (HI) (See Refrigerant Lines Removal Note) (See Refrigerant Lines Installation Note)
2	Cooler pipe (See Refrigerant Lines Removal Note) (See Refrigerant Lines Installation Note)
3	Condenser (See Condenser Installation Note)

6. Install in the reverse order of removal.

7. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Condenser Installation Note

1. When installing a new condenser, add a supplemental amount of ATMOS GU10 compressor oil inlet the refrigerant cycle.

Supplemental amount (approximate quantity)

20 ml {20 cc, 0.7 fl oz}
