HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION


id091800802000

1. Disconnect the negative battery cable.

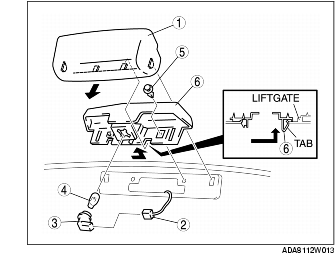

2. Remove in the order indicated in the table.

1
Cover
2
Connector
3
Socket
4
High-mount brake light bulb
5
Fastener
6
High-mount brake light

3. Install in the reverse order of removal.

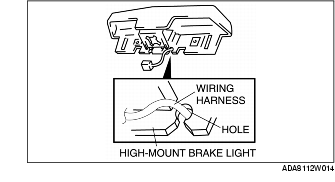

High-mount Brake Light Installation Note

1. Pass the wiring harness through the high-mount brake light hole, then install the light to the liftgate.
