1. Remove the audio unit. (See CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY.)

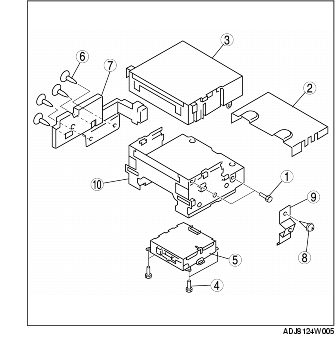

2. Disassemble in the order indicated in the table.
|
1
|
Screw
|
|
2
|
Cover (Without upper module)
|
|
3
|
Upper module
|
|
4
|
Screw
|
|
5
|
Lower module
|
|
6
|
Screw
|
|
7
|
Wiring harness
|
|
8
|
Screw
|
|
9
|
Bracket
|
|
10
|
Base unit
|
3. Assemble in the reverse order of disassembly.
