LUBRICATION SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id0111e7800100

am2zzw00005911

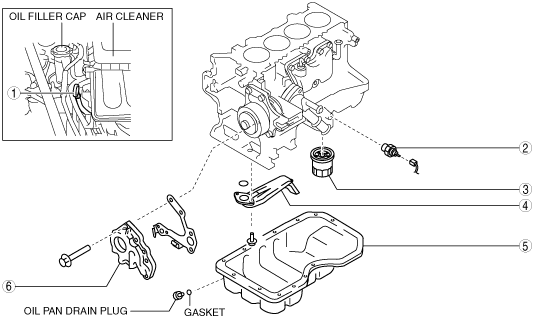

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR 1.3, MZR 1.5].) (See ENGINE OIL REPLACEMENT [MZR 1.3, MZR 1.5].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR 1.3, MZR 1.5].)
3	Oil filter (See OIL FILTER REPLACEMENT [MZR 1.3, MZR 1.5].)
4	Oil strainer (See OIL PAN REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
6	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [MZR 1.3, MZR 1.5].) (See OIL PUMP INSPECTION [MZR 1.3, MZR 1.5].)
